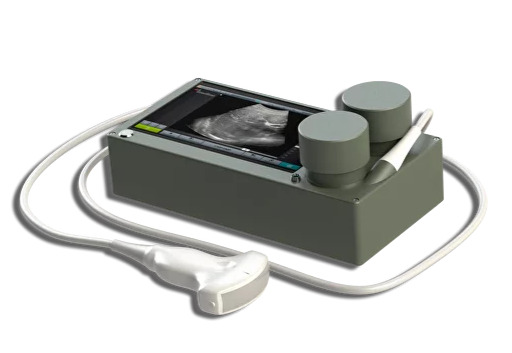

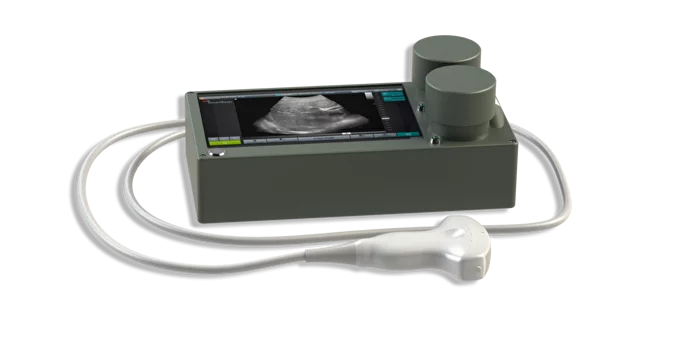

Portable Ultrasound Scanner TUZ is tactical application of ultrasound at the right time in the right place.
The first ultrasound scanner designed specifically for use in emergency and military medicine, providing doctors of various specialties with the necessary diagnostics at the right time and in the right place.
The TUZ ultrasonic scanner with an interactive user interface, a 7-inch touchscreen with replaceable batteries and the possibility of autonomous operation in diagnostic mode for at least 120 minutes.
- CompactSize: 24 х 17 х 5 сm
- Made in RussiaDeveloped and produced in Russia
- MobileUltrasound diagnostics at the right time in the right place
- CompactSize: 24 х 17 х 5 сm
- Made in RussiaDeveloped and produced in Russia
- MobileUltrasound diagnostics at the right time in the right place
Unique features
Interactive user interface
Intuitive interface with adjustment to the requirements of a doctor with a touch screen.
Creating an automatic conclusion
Interactive protocols make it easy to conduct research. The user interface will guide the doctor step by step through the entire examination procedure and help create a diagnostic conclusion.
Compatibility with cloud technologies
Allows you to create virtual image archives and implement remote consultations to obtain diagnostic information (telemedicine).
Emergency ultrasound diagnostics for a clinician
At any stage of pre-hospital care, hospital stage and inter-hospital transfer
Built-in FAST protocol and BLUE protocol modules
The rapid diagnosis of severe injuries necessary for the provision of emergency medical care is provided by the built-in FAST and BLUE protocol software modules.
Increased mobility
The low weight and dimensions allow "TUZ" be used in any conditions without loss of diagnostic quality.
Maintainability and interchangeability
A cassette of boards is used (the boards are fixed on some frame, which is attached to the top cover of the device)
Moisture protection
The device body has no through holes, which prevents moisture and dirt from entering.
USE
This scanner is designed to work in the field. It is suitable for providing first aid to fighters who find themselves in the red zone.
Unique features
Intuitive interface with adjustment to the requirements of a doctor with a touch screen.
Interactive protocols make it easy to conduct research. The user interface will guide the doctor step by step through the entire examination procedure and help create a diagnostic conclusion.
Allows you to create virtual image archives and implement remote consultations to obtain diagnostic information (telemedicine).
At any stage of pre-hospital care, hospital stage and inter-hospital transfer
The rapid diagnosis of severe injuries necessary for the provision of emergency medical care is provided by the built-in FAST and BLUE protocol software modules.
The low weight and dimensions allow "TUZ" be used in any conditions without loss of diagnostic quality.
A cassette of boards is used (the boards are fixed on some frame, which is attached to the top cover of the device)
The device body has no through holes, which prevents moisture and dirt from entering.
ULTRASOUND PROBES
Convex 3.5С60
1. Operating frequency range,
2 - 5.6 MHz
2. Number of elements, 96
3. Aperture size, 88 mm
Areas of application:
Scanning of abdominal organs, pelvic organs, thoracic organs. Obstetrics.
2 - 5.6 MHz
2. Number of elements, 96
3. Aperture size, 88 mm
Areas of application:
Scanning of abdominal organs, pelvic organs, thoracic organs. Obstetrics.
Linear 7.5L38
1.Operating frequency range,
4 -10.5 MHz
2. Number of elements, 128
3. Aperture size, 38 mm.
Areas of application:
Scanning of surface structures, thyroid gland, mammary gland, superficial lymph nodes, nerves, joints.
4 -10.5 MHz
2. Number of elements, 128
3. Aperture size, 38 mm.
Areas of application:
Scanning of surface structures, thyroid gland, mammary gland, superficial lymph nodes, nerves, joints.
ULTRASOUND
PROBES
PROBES
Convex 3.5С60
1. Operating frequency range,
2 - 5.6 MHz
2. Number of elements, 96
3. Aperture size, 88 mm
Areas of application:
Scanning of abdominal organs, pelvic organs, thoracic organs. Obstetrics.
2 - 5.6 MHz
2. Number of elements, 96
3. Aperture size, 88 mm
Areas of application:
Scanning of abdominal organs, pelvic organs, thoracic organs. Obstetrics.
Linear 7.5L38
1.Operating frequency range,
4 -10.5 MHz
2. Number of elements, 128
3. Aperture size, 38 mm.
Areas of application:
Scanning of surface structures, thyroid gland, mammary gland, superficial lymph nodes, nerves, joints.
4 -10.5 MHz
2. Number of elements, 128
3. Aperture size, 38 mm.
Areas of application:
Scanning of surface structures, thyroid gland, mammary gland, superficial lymph nodes, nerves, joints.
Why doctors chose TUZ
Quick diagnosis without loss of quality
Transmission of diagnostic information via communication channels
Shock-proof housing
Diagnosis at any stage of prehospital care, hospital stage and interhospital transfer
